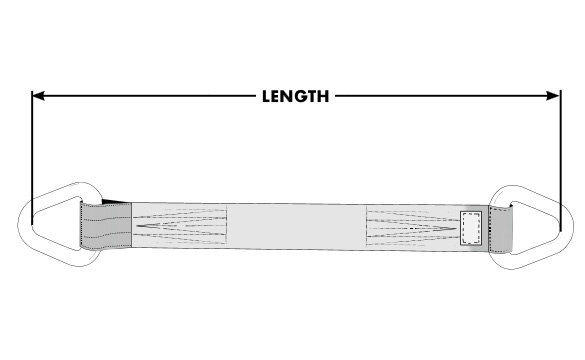

Type 2 (TC) - Nylon or Polyester Flat Web Sling made with a Web-Trap triangle on each end. Normally used in a basket hitch but can also be used in a vertical hitch. They cannot be used as a choker.
One Ply Heavy Duty - Type II Triangle Triangle
|
Type 2 Triangle Triangle |
Vertical (lbs.) |
Choker (lbs.) |
Basket (lbs.) |
|---|---|---|---|
|
TT1-902P |
3,200 |
2,500 |
6,400 |
|
TT1-903P |
4,800 |
3,800 |
9,600 |
|
TT1-904P |
6,400 |
5,000 |
12,800 |
|
TT1-906P |
9,600 |
7,700 |
19,200 |
|
TT1-908P |
12,800 |
10,200 |
25,600 |
|
TT1-910P |
16,000 |
12,800 |
32,000 |
|
TT1-912P |
19,200 |
15,400 |
68,400 |
Two Ply Heavy Duty - Type II Triangle Triangle
|
Type I Triangle Triangle |
Vertical (lbs.) |
Choker (lbs.) |
Basket (lbs.) |
|---|---|---|---|
|
TT2-902P |
6,400 |
5,000 |
12,800 |
|
TT2-903P |
8,600 |
6,900 |
17,200 |
|
TT2-904P |
11,500 |
9,200 |
23,000 |
|
TT2-906P |
16,300 |
13,000 |
32,600 |
|
TT2-908P |
19,200 |
15,400 |
38,400 |
|
TT2-910P |
22,400 |
17,900 |
44,800 |
|
TT2-912P |
26,900 |
21,500 |
53,800 |
- WEBBING Available in both - Polyester and/or Nylon
- Private labeling available upon request
- Larger sizes available upon request
- Heavy duty polyester 9800lbs webbing
- Metal hardware prolongs the life of slings prone to damage on the end of the sling.
- Minimum 5:1 design factor.
- Do not exceed rated capacities. The ratings must be reduced when lifting at angles of less than 90 degrees with the horizontal.
